Haiyue Tube Ice Machine can be customized. It can produce transparent and sanitary cylinder ice. The ice is food grade and not easy to melt.
Products Advantage:

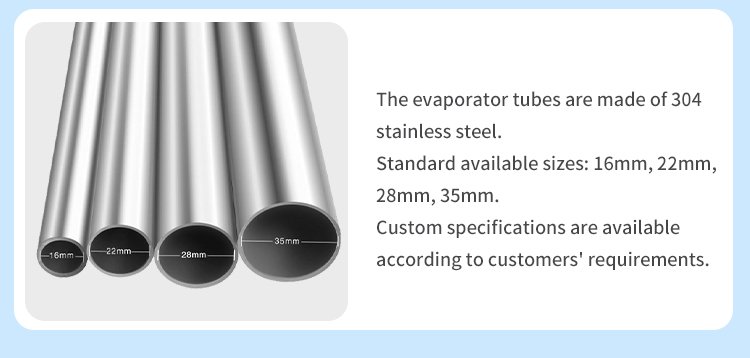

·High Reliability: For the evaporator, we use sus304 insulating polyurethane foam. The evaporator is the heart of a tube ice maker, where the actual ice formation process takes place. It is a critical heat exchanger responsible for removing heat from water and freezing it into the characteristic hollow cylindrical tubes of ice. Therefore, the ice will form quickly and the ice is hard enough,not easy to melt.
For the compressor, we use the famous brand, such as Bitzer, Refcomp, Copeland, Emerson and so on.The compressor is unequivocally the heart of the refrigeration system in an ice maker. Its primary function is to circulate the refrigerant throughout the system and create the pressure differences necessary for heat absorption and rejection, which ultimately leads to ice production.Therefore, the performance, efficiency, and reliability of the compressor directly determine the ice-making capacity, speed, and energy consumption of the entire ice maker.

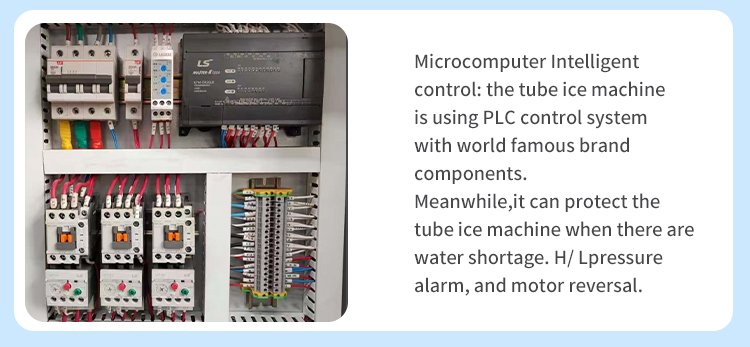

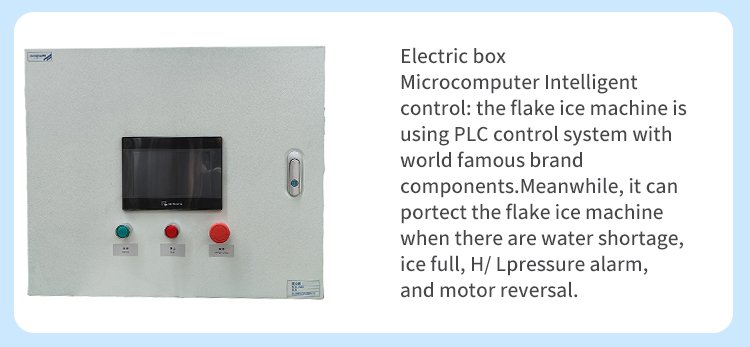

. Intuitive & Smart Controls: We use PLC controlling system. User-friendly interfaces with self-diagnostic systems make operation and maintenance simple. From compact under-counter units to high-volume modular systems, we have the perfect machine for any operation size.
· Global Support & Service: Our commitment doesn't end at sale. Our dedicated technical support and parts network ensure you have help whenever you need it, anywhere in the world.
· Widely used in commerce and industry: For food processing and preservation, restaurants,bars,hotels and cafes.For fishing,concrete cooling,chemical processing, and healthcare.
| Name | 30T tube ice machie |
| Total input power (KW) | 96 |
| Power supply | 3P/380V/50HZ or customized |
| Water pressure | 0.1Mpa-0.5Mpa |
| Refrigerant | R404A |
| Weight (kg) | 3000 |
| Dimention (mm) | 3100*2200*2500 |
Model# | Daily Production | Total Power (KW) | Compressor Brand | Evaporator Brand | Dimention (L*W*H m) | Machine Unit Weight (KGS) | Tube Ice Size (mm) |
HYT0.5T-R4A | 500Kgs/24hours | 4.6 | Bitzer,Copeland, Refcomp, Danfoss, Invotech, Emerson Xuemei, Panasonic, Hanzhong And so on | Haiyue | 1.2*1.2*1.2m | 950 | 16 22 28 34 40 |
HYT1T-R4A | 1t/24 hours | 7.56 | Haiyue | 1.5*1.4*2.2m | 1150 |
HYT2T-R4A | 2t/24 hours | 10.78 | Haiyue | 1.65*1.4*2.2m | 1150 |
HYT3T-R4A | 3t/24 hours | 13.58 | Haiyue | 1.7*1.5*2.15m | 1280 |
HYT5T-R4A | 5t/24 hours | 20.15 | Haiyue | 1.75*1.5*2.25m | 1600 |
HYT10T-R4A | 10t/24 hours | 44.5 | Haiyue | 2.2*1.6*2.1m | 1900 |
HYT15T-R4A | 15t/24 hours | 46.2 | Haiyue | 2.25*2*1.8m | 2500 |
HYT20T-R4A | 20t/24 hours | 62 | Haiyue | 2.3*2.1*1.8 | 2700 |
HYT25T-R4A | 25t/24 hours | 112.4 | Haiyue | 2.35*2*1.8m | 4500 |
HYT30T-R4A | 30t/24 hours | 122 | Haiyue | 3.1*2.2*2.5m | 5000 |
HYT35T-R4A | 35t/24 hours | 127 | Haiyue | 3.2*2.3*2.5 | 6000 |
HYT40T-R4A | 40t/24 hours | 132 | Haiyue | 3.5*2.5*2.5 | 7200 |
