· Brand: Haiyue · Product origin: Qingdao China
The whole machine unit includes 3 parts:
• Ice making system: It includes evaporator,reducer, water pump and other matching accessories. All the components' material is SUS 304, they are high qulity and easy to change.

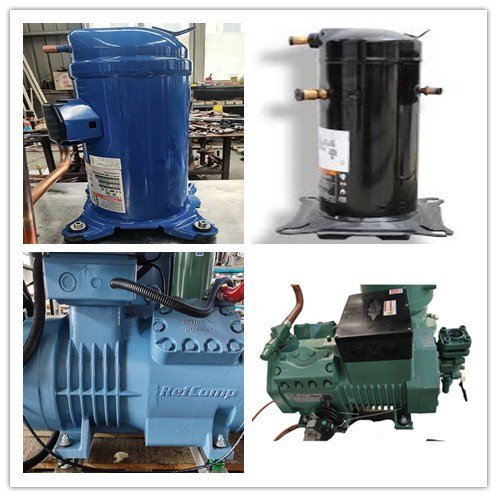

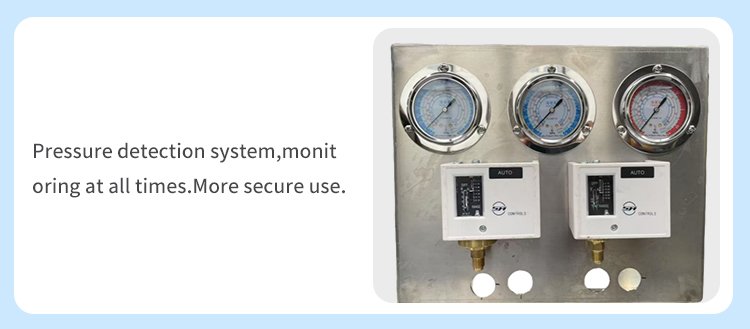

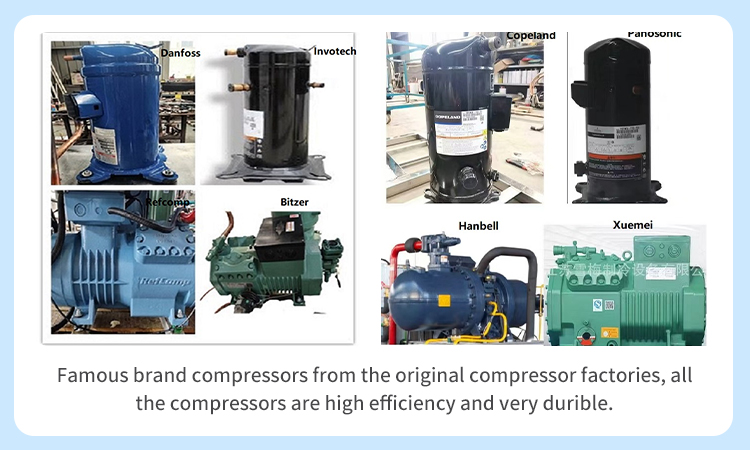

• Refrigeration system: It includes compressor, condenser, reservoir, liquid receiver, oil seperator, pressure switches and other matching accessories. All the parts are installed on a steel frame structure to form the whole set.

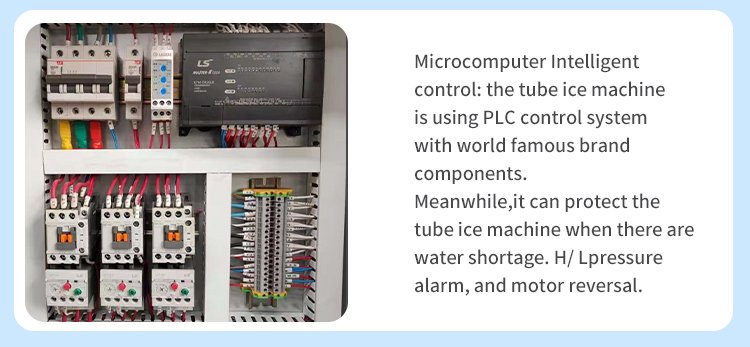

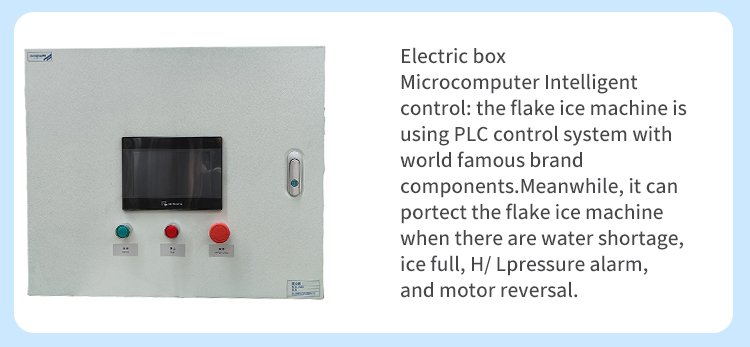

• Controling system: It includes PLC controlling box, A/C contactor. thermal relay,air switch, touch screen and other matching accessories. All the components are famous brand and high quality.
Standard power supply for large capacity tube ice making machine is 3P/ 380V/50HZ, also we can customize it for you. Our ice tube machine are easy to operate , install and ship.
Model# | Daily Production | Total Power (KW) | Compressor Brand | Evaporator Brand | Dimention (L*W*H m) | Machine Unit Weight (KGS) |
HYT0.5T-R4A | 500Kgs/24hours | 4.6 | Bitzer,Copeland, Refcomp, Danfoss, Invotech, Emerson Xuemei, Panasonic, Hanzhong And so on | Haiyue | 1.2*1.2*1.2m | 950 |
HYT1T-R4A | 1t/24 hours | 7.56 | Haiyue | 1.5*1.4*2.2m | 1150 | |
HYT2T-R4A | 2t/24 hours | 10.78 | Haiyue | 1.65*1.4*2.2m | 1150 | |
HYT3T-R4A | 3t/24 hours | 13.58 | Haiyue | 1.7*1.5*2.15m | 1280 | |
HYT5T-R4A | 5t/24 hours | 20.15 | Haiyue | 1.75*1.5*2.25m | 1600 | |
HYT10T-R4A | 10t/24 hours | 44.5 | Haiyue | 2.2*1.6*2.1m | 1900 | |
HYT15T-R4A | 15t/24 hours | 46.2 | Haiyue | 2.25*2*1.8m | 2500 | |
HYT20T-R4A | 20t/24 hours | 62 | Haiyue | 2.3*2.1*1.8 | 2700 | |
HYT25T-R4A | 25t/24 hours | 112.4 | Haiyue | 2.35*2*1.8m | 4500 | |
HYT30T-R4A | 30t/24 hours | 122 | Haiyue | 3.1*2.2*2.5m | 5000 | |
HYT35T-R4A | 35t/24 hours | 127 | Haiyue | 3.2*2.3*2.5 | 6000 | |
HYT40T-R4A | 40t/24 hours | 132 | Haiyue | 3.5*2.5*2.5 | 7200 |
