The whole unit includes 3 parts:

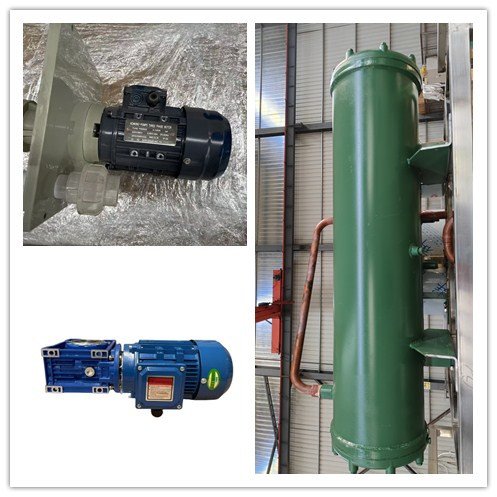

• Ice making system: It includes evaporator,reducer, water pump and other matching accessories. All the components are high qulity and easy to change.

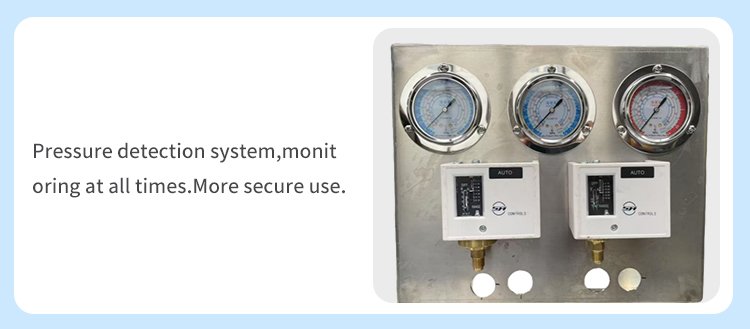

• Refrigeration system: It includes compressor, condenser, reservoir, liquid receiver, oil seperator, pressure switches and other matching accessories. All the parts are installed on a steel frame structure to form the whole set.

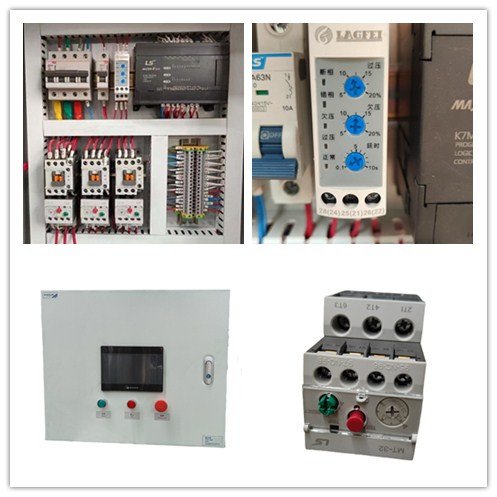

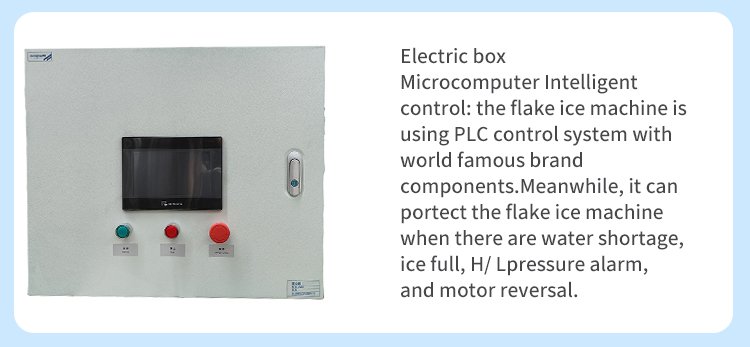

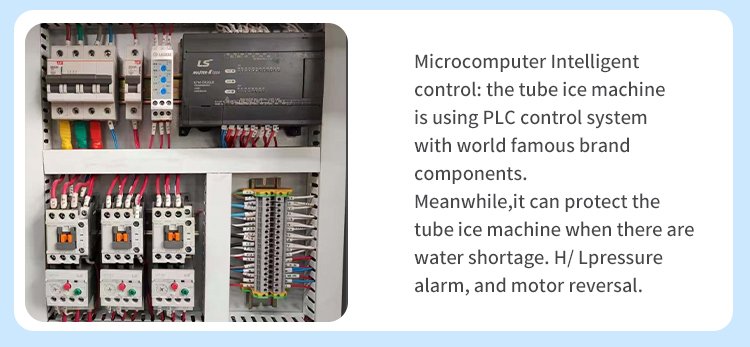

• Controling system: It includes PLC controlling box, A/C contactor. thermal relay,air switch, touch screen and other matching accessories. All the components are famous brand and high quality.
Standard power supply for large capacity tube ice making machine is 3P/ 380V/50HZ, also we can customize it for you.
Advantage of our tube ice machine:
Food-grade evaporator – Made of stainless steel 304 for safe, hygienic ice production.

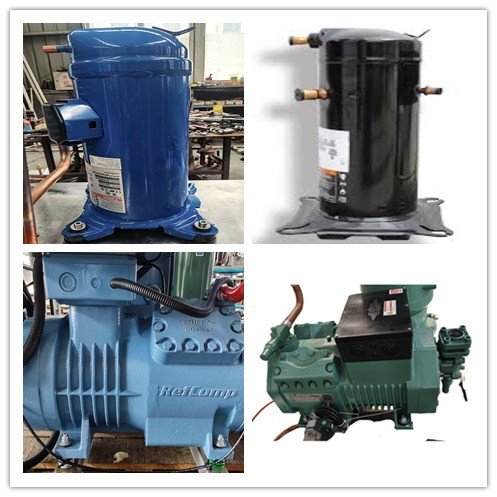

Famous brand compressors: Bitzer, Refcomp, Copeland, Danfoss, Hanbell, ensuring reliable performance.
Customized solutions: Tailored to your specific operating conditions.
Customized ice diameter :Available in 16mm, 24mm, 28mm, 34mm, and 40mm.

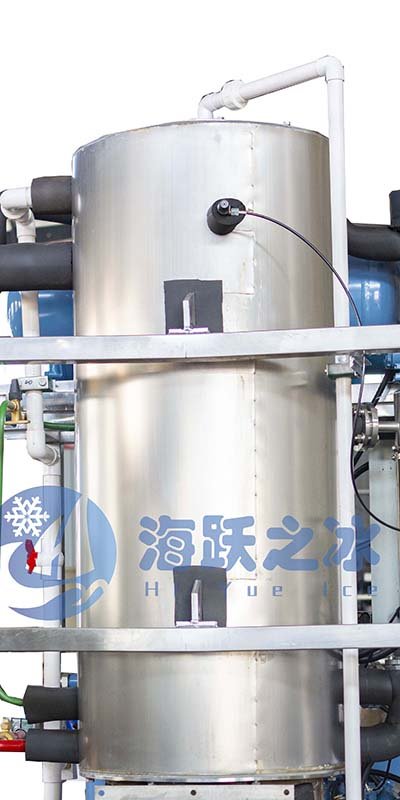

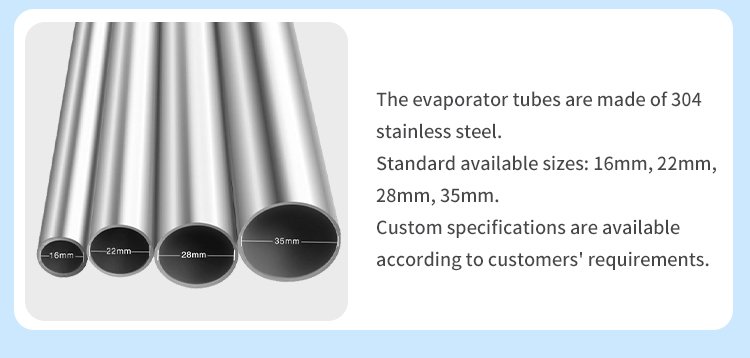

For the evaporator, we use the material of sus304 insulating polyurethane foam,The evaporator is the heart of a tube ice maker, where the actual ice formation process takes place. It is a critical heat exchanger responsible for removing heat from water and freezing it into the characteristic hollow cylindrical tubes of ice.Stainless Steel 304 Tubes Inside the Evaporator:
Premium material property:Adopts food-grade stainless steel, which is safe and hygienic for ice production.
Excellent corrosion resistance:Effectively resists erosion from water and refrigerant, avoiding rust and leakage.
Superior thermal conductivity:Ensures efficient heat exchange and accelerates ice freezing speed.
High mechanical strength:Withstands long-term pressure and temperature changes, not easy to deform.
Long service life:Stable performance under continuous operation, cutting replacement costs.

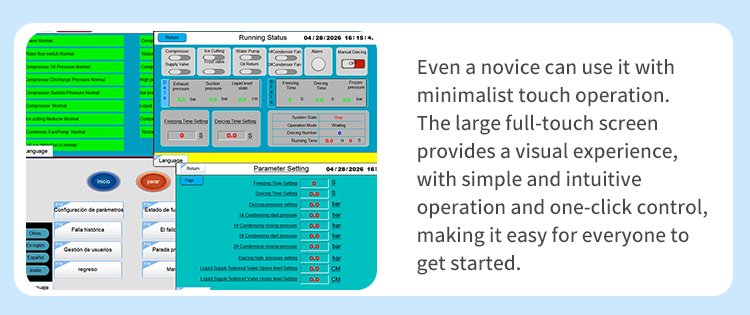

· Intuitive & Smart Controls: We use PLC controlling system. User-friendly interfaces with self-diagnostic systems make operation and maintenance simple.From compact under-counter units to high-volume modular systems, we have the perfect machine for any operation size.
· Global Support & Service: Our ice machines have been exported to South America, North America, Europe, Africa, and many other regions. We have received consistent positive feedback from customers worldwide for product quality and reliable performance.
Widely used in commerce and industry: For food processing and preservation, restaurants,bars,hotels and cafes.For fishing,concrete cooling,chemical processing, and healthcare.
| Name | 10T tube ice machine |
| Total input power (KW) | 44.5 |
| Power supply | 3P/380V/50HZ or customized |
| Water pressure | 0.1Mpa-0.5Mpa |
| Refrigerant | R404A |
| Weight (kg) | 1900 |
| Dimention (mm) | 2200*1600*3100 |
Model# | Daily Production | Total Power (KW) | Compressor Brand | Evaporator Brand | Dimention (L*W*H m) | Machine Unit Weight (KGS) | Tube Ice Size (mm) |
HYT0.5T-R4A | 500Kgs/24hours | 4.6 | Bitzer,Copeland, Refcomp, Danfoss, Invotech, Emerson Xuemei, Panasonic, Hanzhong And so on | Haiyue | 1.2*1.2*1.2m | 950 | 16 22 28 34 40 |
HYT1T-R4A | 1ton/24 hours | 7.56 | Haiyue | 1.5*1.4*2.2m | 1150 |
HYT2T-R4A | 2tons/24 hours | 10.78 | Haiyue | 1.65*1.4*2.2m | 1150 |
HYT3T-R4A | 3tons/24 hours | 13.58 | Haiyue | 1.7*1.5*2.15m | 1280 |
HYT5T-R4A | 5tons/24 hours | 20.15 | Haiyue | 1.75*1.5*2.25m | 1600 |
HYT10T-R4A | 10tons/24 hours | 44.5 | Haiyue | 2.2*1.6*2.1m | 1900 |
HYT15T-R4A | 15tons/24 hours | 46.2 | Haiyue | 2.25*2*1.8m | 2500 |
HYT20T-R4A | 20tons/24 hours | 62 | Haiyue | 2.3*2.1*1.8 | 2700 |
HYT25T-R4A | 25tons/24 hours | 112.4 | Haiyue | 2.35*2*1.8m | 4500 |
HYT30T-R4A | 30tons/24 hours | 122 | Haiyue | 3.1*2.2*2.5m | 5000 |
HYT35T-R4A | 35tons/24 hours | 127 | Haiyue | 3.2*2.3*2.5 | 6000 |
HYT40T-R4A | 40tons/24 hours | 132 | Haiyue | 3.5*2.5*2.5 | 7200 |
