Haiyue ice machine

The tube ice machines includes 3 parts:

• Ice making system: It includes evaporator,reducer, water pump and other matching accessories. All

the components are high qulity and easy to change.

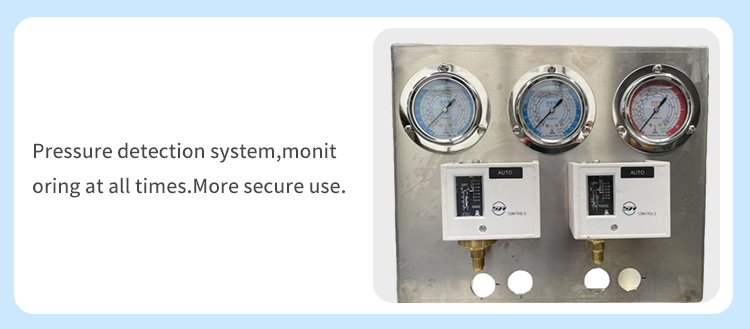

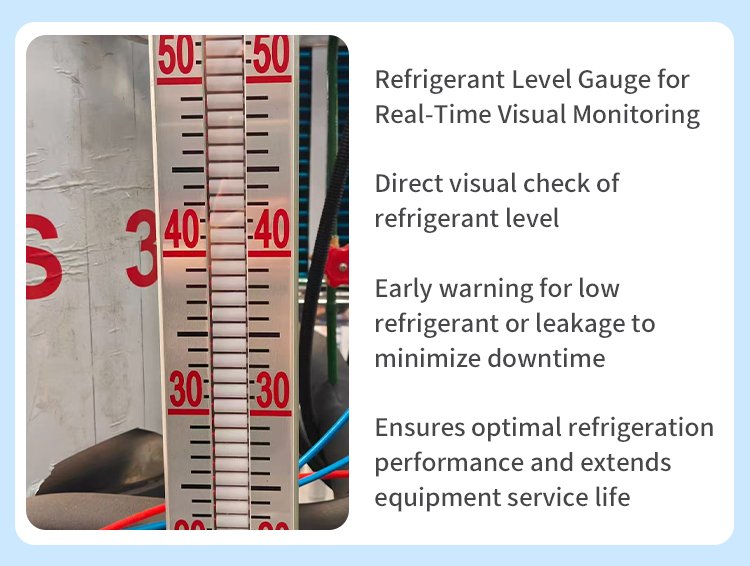

• Refrigeration system: It includes compressor, condenser, reservoir, liquid receiver, oil seperator,

pressure switches and other matching accessories. All the parts are  installed on a steel frame

structure to form the whole set.

• Controling system: It includes PLC controlling box, A/C contactor. thermal relay,air switch, touch

screen and other matching accessories. All the components are famous brand and high quality.

Standard power supply for large capacity tube ice making machine is 3P/ 380V/50HZ, also we can

 customize it for you.

Advantage of our tube ice machine:

Food-grade evaporator – Made of stainless steel 304 for safe, hygienic ice production.

Famous brand compressors: Bitzer, Refcomp, Copeland, Danfoss, Hanbell, ensuring reliable

performance.

Customized solutions: Tailored to your specific operating conditions.

Customized ice diameter :Available in 16mm, 24mm, 28mm, 34mm, and 40mm.

Customization Capabilities – Tube Ice Machines

As a direct manufacturer, we offer flexible customization:

1. Voltage & Compressor – Compressor type is customized to match your local voltage for optimal

 performance.

2. Ice Diameter – Tube ice diameter can be adjusted according to your specific requirements.The

diameters are 16mm,24mm,28mm,34mm,40mm

3. Control Language – The PLC control program can be set to your preferred language for easy

 operation.

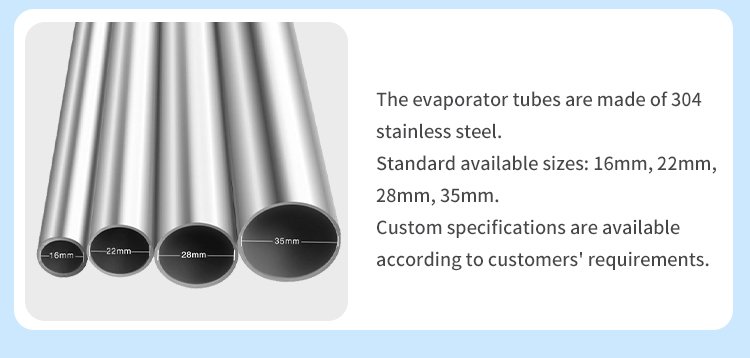

Stainless Steel 304 Tubes Inside the Evaporator:

Premium material property:Adopts food-grade stainless steel, which is safe and hygienic for ice

production.

Excellent corrosion resistance:Effectively resists erosion from water and refrigerant, avoiding rust and

leakage.

Superior thermal conductivity:Ensures efficient heat exchange and accelerates ice freezing speed.

High mechanical strength:Withstands long-term pressure and temperature changes, not easy to

deform.

Long service life:Stable performance under continuous operation, cutting replacement costs.

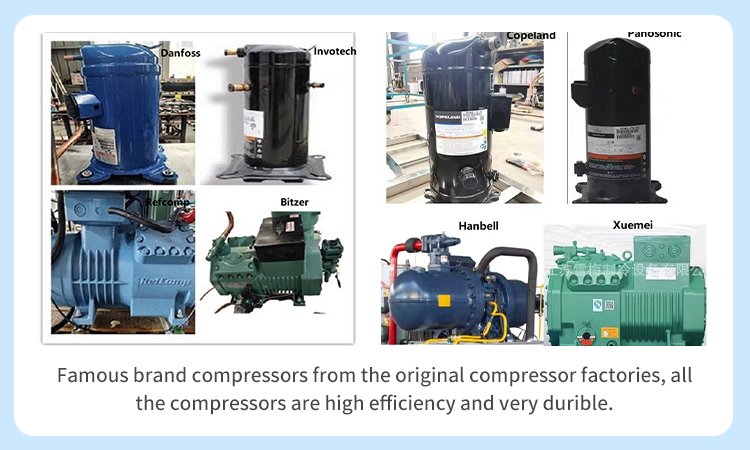

For the compressor, we use the famous brand, such as Bitzer, Refcomp, Copeland, Emerson and so on.The compressor is unequivocally the heart of the refrigeration system in an ice maker. Its primary function is to circulate the refrigerant throughout the system and create the pressure differences necessary for heat absorption and rejection, which ultimately leads to ice production.Therefore, the performance, efficiency, and reliability of the compressor directly determine the ice-making capacity, speed, and energy consumption of the entire ice maker.

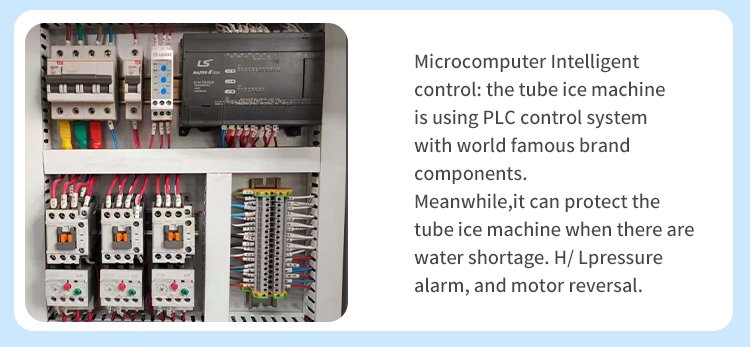

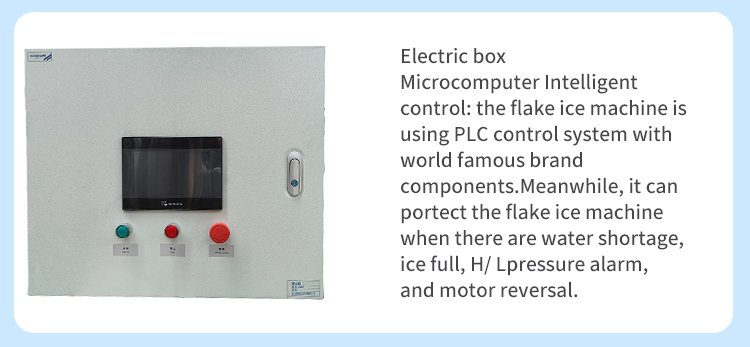

Intuitive & Smart Controls: We use PLC controlling system. User-friendly interfaces with self-diagnostic systems make operation and maintenance simple. From compact under-counter units to high-volume modular systems, we have the perfect machine for any operation size.

·Global Support & Service: Our commitment doesn't end at sale. Our dedicated technical support and parts network ensure you have help whenever you need it, anywhere in the world.

Certificates: We supply OEM and ODM service, all our ice machines are certificated with CE and ISO9001.

Our ice machines have been exported to South America, North America, Europe, Africa, and many

 other regions.

We have received consistent positive feedback from customers worldwide for product quality and

reliable

performance.

Welcome global clients to contact us for factory visits, technical consultations and bulk order

cooperation.

Application:

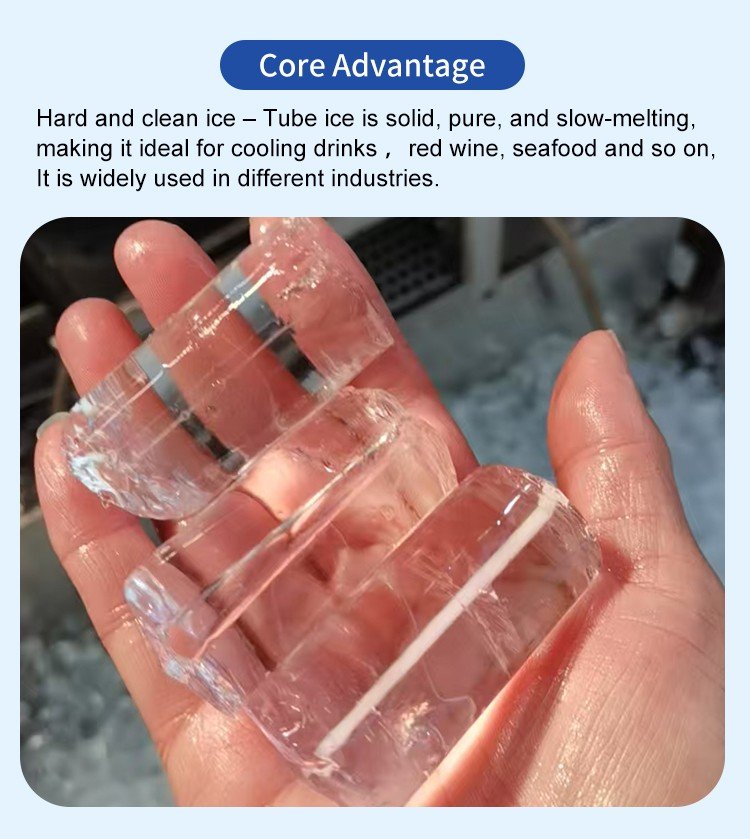

Generated tube ice is widely applied across multiple sectors: seafood processing, fishery cold preservation, meat

processing, fruit‑vegetable fresh‑keeping, supermarket fresh‑food display, concrete cooling for construction

projects, chemical temperature control, pharmaceutical processing, cold‑chain logistics and mining‑site cooling.
