The whole unit includes 3 parts:

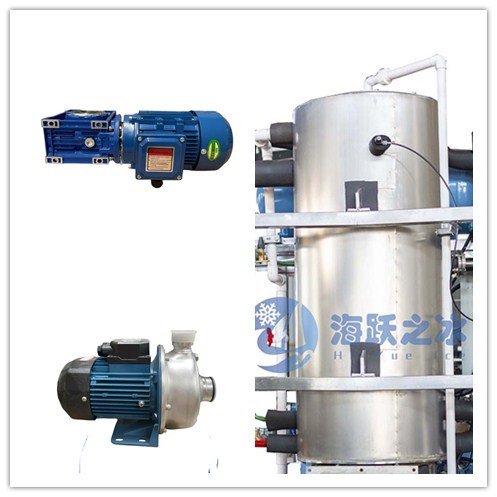

• Ice making system: It includes evaporator,reducer, water pump and other matching accessories. All the components are high qulity and easy to change.

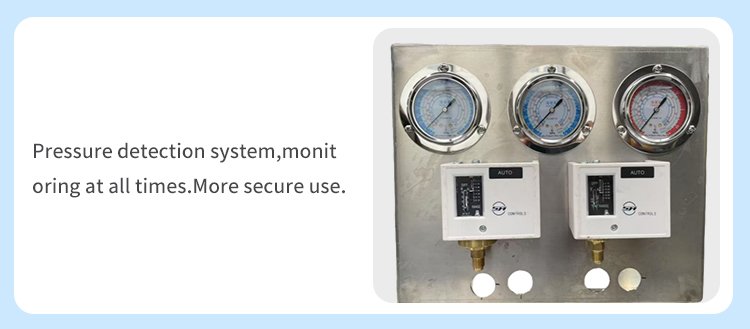

• Refrigeration system: It includes compressor, condenser, reservoir, liquid receiver, oil seperator, pressure switches and other matching accessories. All the parts are installed on a steel frame structure to form the whole set.

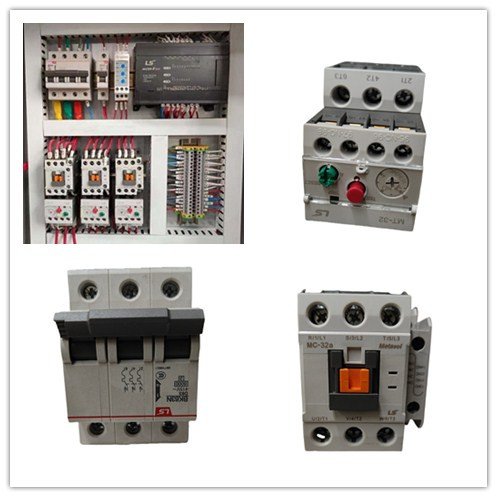

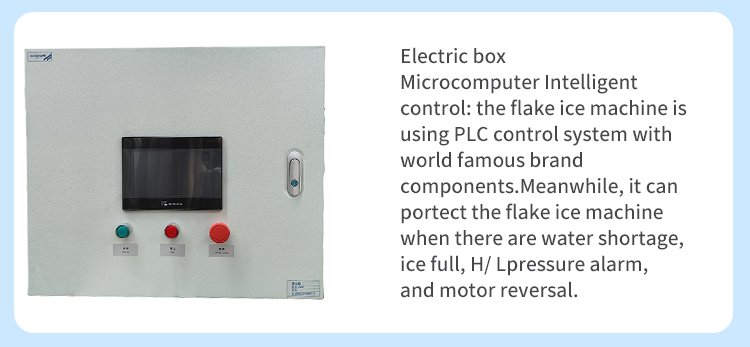

• Controling system: It includes PLC controlling box, A/C contactor. thermal relay,air switch, touch screen and other matching accessories. All the components are famous brand and high quality.
Standard power supply for large capacity tube ice making machine is 3P/ 380V/50HZ, also we can customize it for you.
Advantage of our tube ice machine:
Food-grade evaporator – Made of stainless steel 304 for safe, hygienic ice production.
Famous brand compressors: Bitzer, Refcomp, Copeland, Danfoss, Hanbell, ensuring reliable performance.
Customized solutions: Tailored to your specific operating conditions.
Customized ice diameter :Available in 16mm, 24mm, 28mm, 34mm, and 40mm.

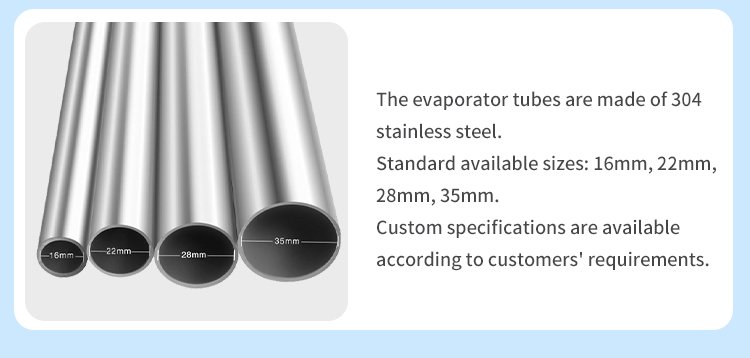

Stainless Steel 304 Tubes Inside the Evaporator:
Premium material property:Adopts food-grade stainless steel, which is safe and hygienic for ice
production.
Excellent corrosion resistance:Effectively resists erosion from water and refrigerant, avoiding rust and
leakage.
Superior thermal conductivity:Ensures efficient heat exchange and accelerates ice freezing speed.
High mechanical strength:Withstands long-term pressure and temperature changes, not easy to
deform.
Long service life:Stable performance under continuous operation, cutting replacement costs.

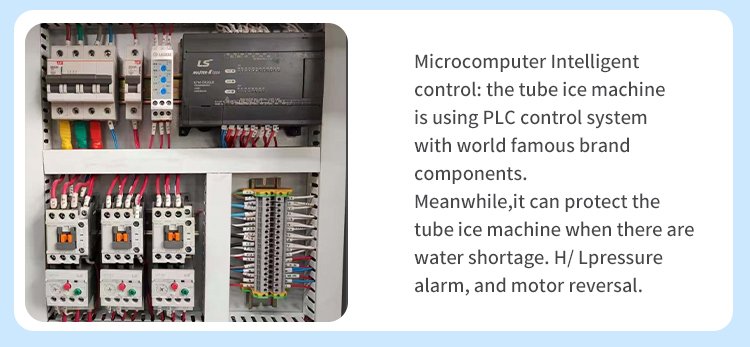

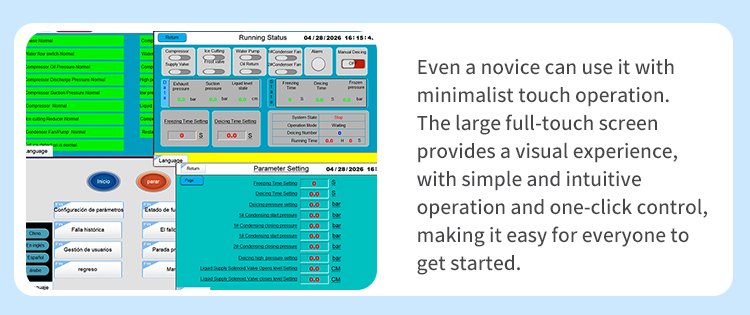

Intuitive & Smart Controls:
Fully automatic start-stop, water supply, and ice scraping.
Real time display of ice thickness, temperature, and alarms.
Auto fault detection with safe shutdown and error codes.
Energy saving (up to 30%) by adjusting compresso fan speed.
Optional remote control via phone or computer.
Consistent ice quality under changing water and air conditions.

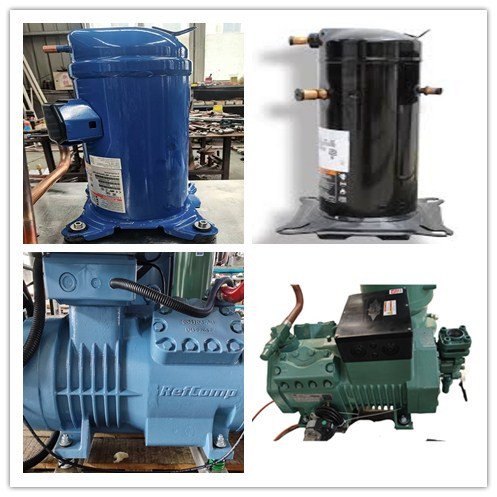

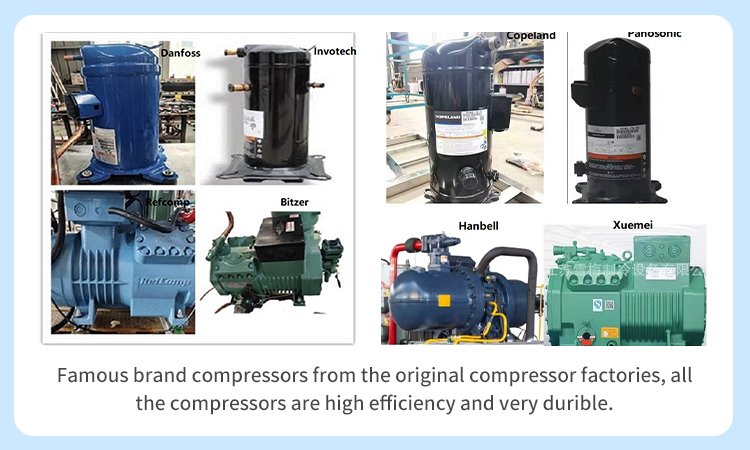

For the refrigeration system, we use good quality and effictive compressor, condensor and other components. Such as Bitzer compressor, Copeland compressor, Refcomp compressor, Xuemei Condensor. The compressors are robust construction,high efficiency, ECOJECTOR and viriable speed drive compatibility. The compressor's primary function is to circulate the refrigerant throughout the system and create the pressure differences necessary for heat absorption and rejection, which ultimately leads to ice production.Therefore, the performance, efficiency, and reliability of the compressor directly determine the ice-making capacity, speed, and energy consumption of the entire ice maker.
Service Commitment
We provide 24/7 online service and technical support through our dedicated presales and aftersales teams. From inquiry to installation and operation, our team is always ready to assist.
Certificates: We supply OEM and ODM service, all our ice machines are certificated with CE and ISO9001
Global Market
Our ice machines have been exported to South America, North America, Europe, Africa, and many other regions. We have received consistent positive feedback from customers worldwide for product quality and reliable performance.
Application:
Generated tube ice is widely applied across multiple sectors: seafood processing, fishery cold preservation, meat processing, fruit‑vegetable fresh‑keeping, supermarket fresh‑food display, concrete cooling for construction projects, chemical temperature control, pharmaceutical processing, cold‑chain logistics and mining‑site cooling.
| Name | 0.5T tube ice machine |
| Total input power (KW) | 3.8 |
| Power supply | 3P/380V/50HZ or customized |
| Water pressure | 0.1Mpa-0.5Mpa |
| Refrigerant | R404A |
| Weight (kg) | 950 |
| Dimention (mm) | 1200*1200*2000 |
Model# | Daily Production | Total Power (KW) | Compressor Brand | Evaporator Brand | Dimention (L*W*H m) | Machine Unit Weight (KGS) |
HYT0.5T-R4A | 500Kgs/24hours | 4.6 | Bitzer,Copeland, Refcomp, Danfoss, Invotech, Emerson Xuemei, Panasonic, Hanzhong And so on | Haiyue | 1.2*1.2*1.2m | 950 |
HYT1T-R4A | 1t/24 hours | 7.56 | Haiyue | 1.5*1.4*2.2m | 1150 |
HYT2T-R4A | 2t/24 hours | 10.78 | Haiyue | 1.65*1.4*2.2m | 1150 |
HYT3T-R4A | 3t/24 hours | 13.58 | Haiyue | 1.7*1.5*2.15m | 1280 |
HYT5T-R4A | 5t/24 hours | 20.15 | Haiyue | 1.75*1.5*2.25m | 1600 |
HYT10T-R4A | 10t/24 hours | 44.5 | Haiyue | 2.2*1.6*2.1m | 1900 |
HYT15T-R4A | 15t/24 hours | 46.2 | Haiyue | 2.25*2*1.8m | 2500 |
HYT20T-R4A | 20t/24 hours | 62 | Haiyue | 2.3*2.1*1.8 | 2700 |
HYT25T-R4A | 25t/24 hours | 112.4 | Haiyue | 2.35*2*1.8m | 4500 |
HYT30T-R4A | 30t/24 hours | 122 | Haiyue | 3.1*2.2*2.5m | 5000 |
HYT35T-R4A | 35t/24 hours | 127 | Haiyue | 3.2*2.3*2.5 | 6000 |
HYT40T-R4A | 40t/24 hours | 132 | Haiyue | 3.5*2.5*2.5 | 7200 |
There are four sizes of tube ice outer diameter 16mm, 22mm, 28mm, 35mm; inner diameter can be adjusted according to the ice making time. Usually between 5~10mm.
