The whole unit includes 3 parts:
• Ice making system: The flake ice machine includes evaporator,reducer, water pump and other
matching accessories. All the components are high qulity and easy to change.
• Refrigeration system: It includes compressor, condenser, reservoir, liquid receiver, oil seperator,
pressure switches and other matching accessories. All the parts are installed on a steel frame
structure to form the whole set.
• Controling system: It includes PLC controlling box, A/C contactor. thermal relay,air switch, touch
screen and other matching accessories. All the components are famous brand and high quality.
Standard power supply for large capacity tube ice making machine is 3P/ 380V/50HZ, also we can
customize it for you.
Products Advantage:

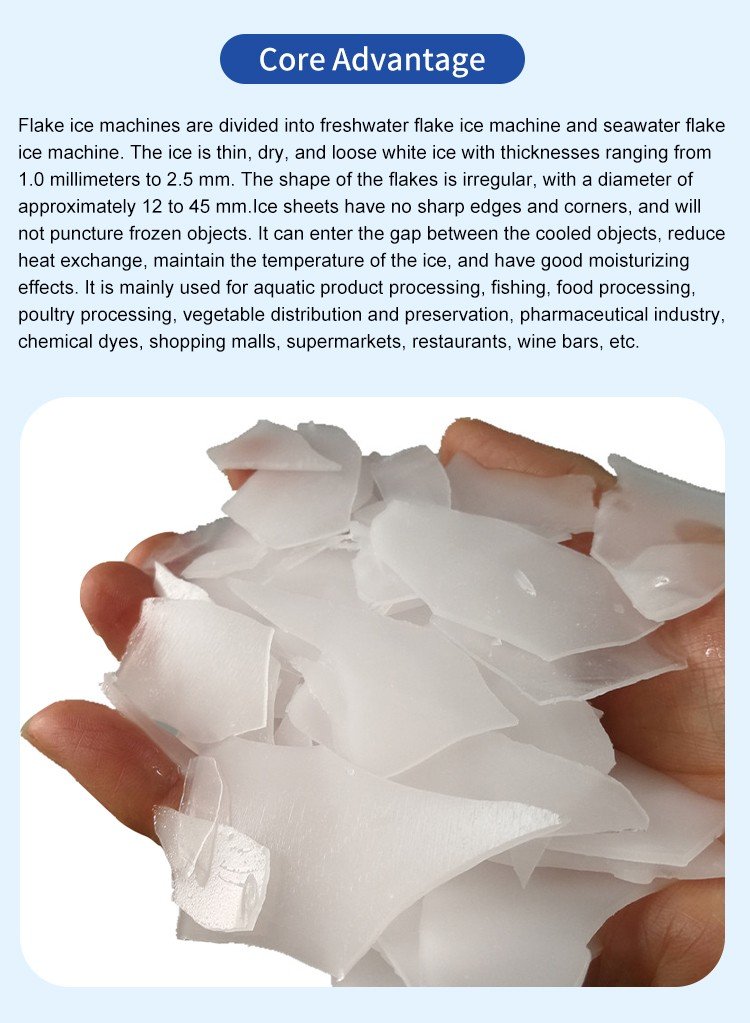

Flake ice machines are divied into fresh water flake ice machine and seawater flake ice machine.
The ice is thin,dry,and loose white ice with thickness ranging from 1mm to 2.5mm. The shape of the
flakes is irregular,with a diameter of approximately 12 to 45mm. Ice sheets have no sharp edges and
corners,and will not puncture frozen objects. It can enter the gap between the cooled objects,reduce
heat exchange,maintain the temperature of the ice, and have good moisturizing effects. It is mainly
used for aquatic product processing,fishing,food processing,poultry processing,vegetable distribution
and preservation,pharmaceutical industry,chemical dyes,shopping malls,supermarkets,restaurants,
wine bars,etc.

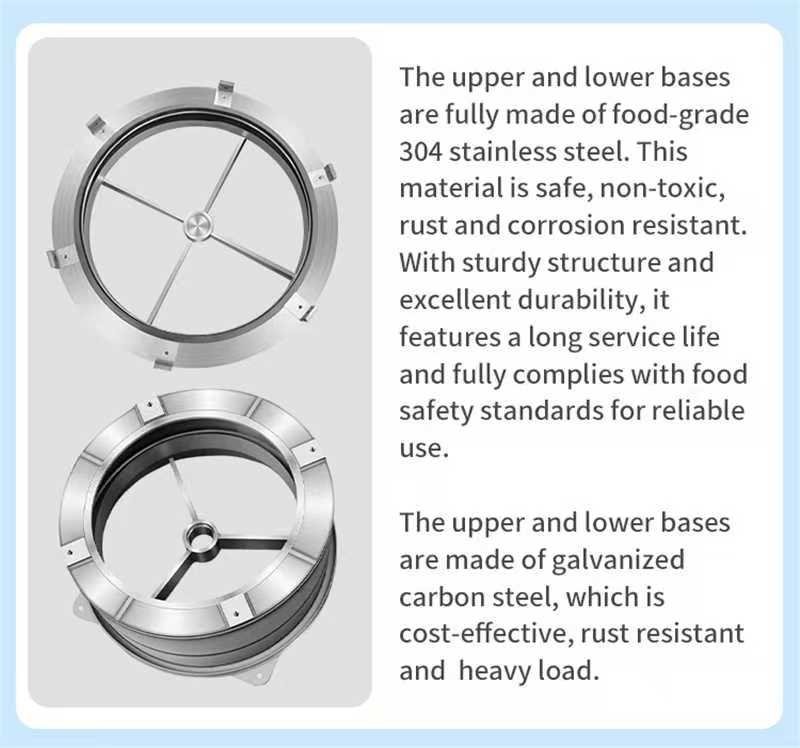

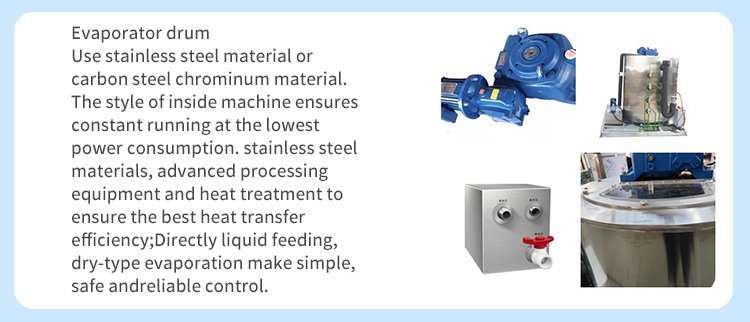

Evaporator :
The upper and lower bases are fully made of food grade 304 stainless steel. This material is safe,
nontoxic, rust and corrosion resistant. With sturdy structure and excellent durability, it features a
long service life and fully complies with food safety standards for reliable use.

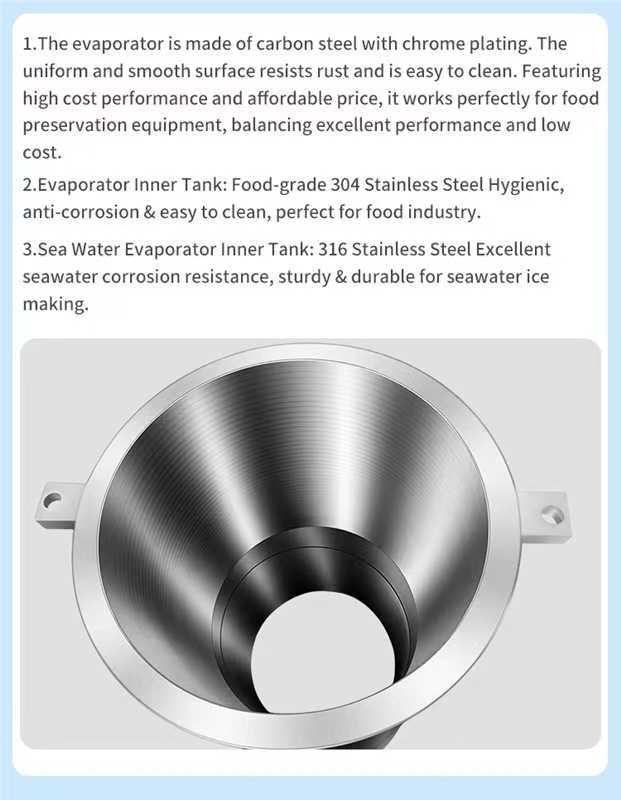

Evaporator Inner Tank: Food grade 304 Stainless Steel.
Hygienic, anticorrosion and easy to clean, perfect for food industry.

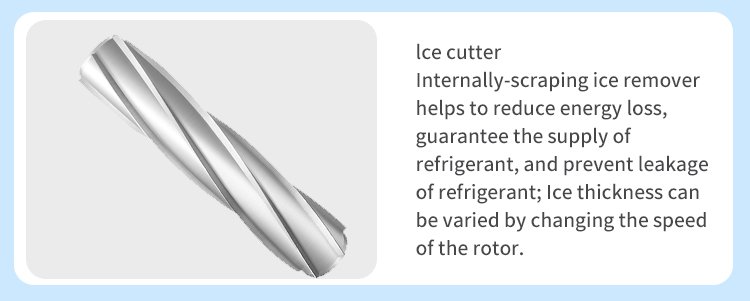

Ice Scraper (Ice Knife)
A helical stainless steel 304 blade rotates against the evaporator wall, cutting off dry, compact flake
ice without damaging the surface.

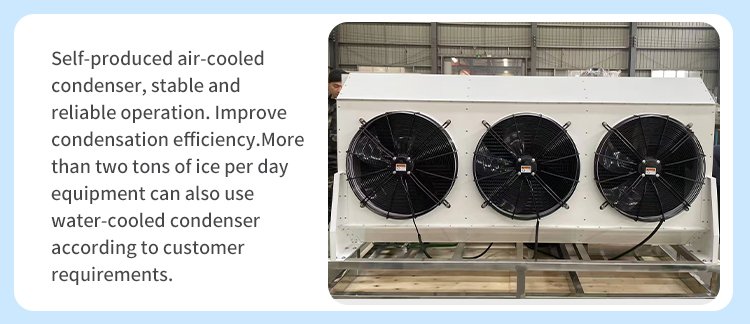

Condenser
Available in aircooled, watercooled, or remote types. It quickly releases heat from
the refrigerant, ensuring stable operation even in high temperatures.

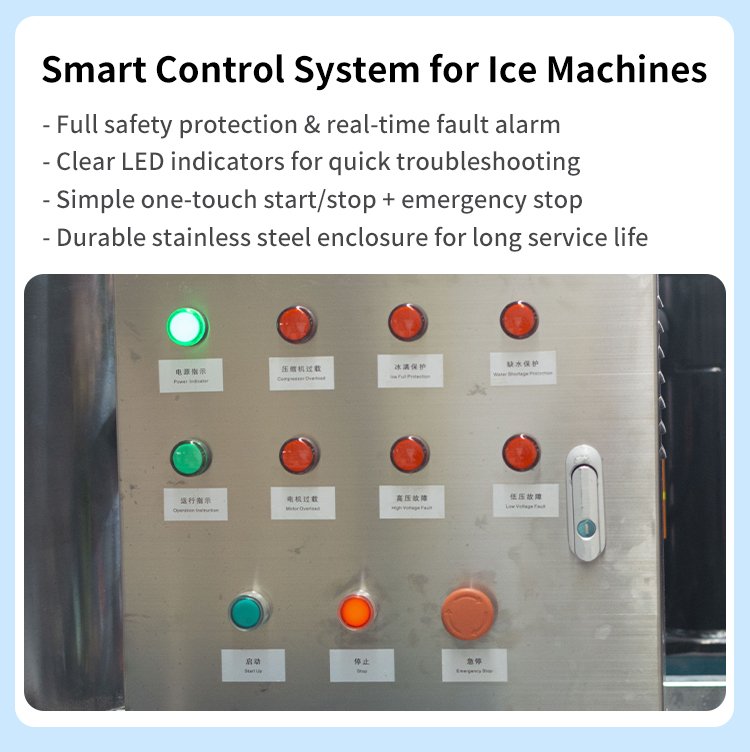

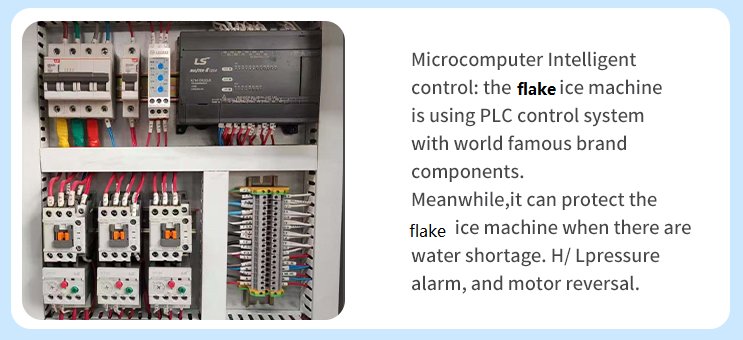

PLC Control System
Fully automatic start stop, water supply, and ice scraping.
Real time display of ice thickness, temperature, and alarms.
Auto fault detection with safe shutdown and error codes.
Energy saving (up to 30%) by adjusting compresso fan speed.
Optional remote control via phone or computer.
Consistent ice quality under changing water and air conditions.

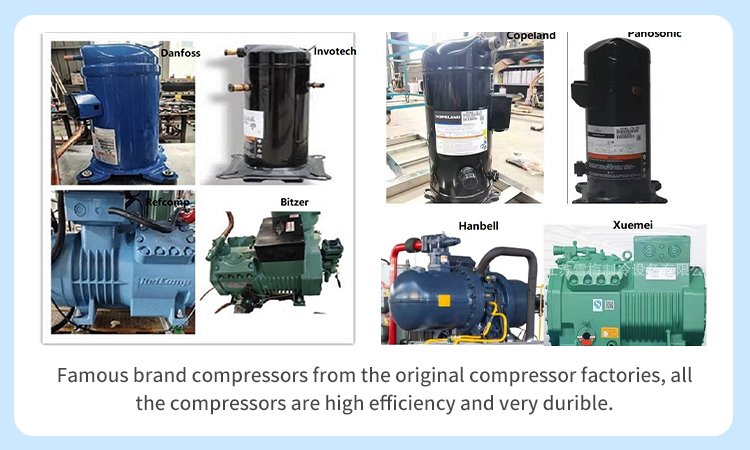

For the refrigeration system, we use good qualit and effictive compressor, condensor and other components. Such as Bitzer compressor, Copeland compressor, Refcomp compressor, Xuemei Condensor. The compressors are robust construction,high efficiency, ecojector and viriable speed drive compatibility. The compressor's primary function is to circulate the refrigerant throughout the system and create the pressure differences necessary for heat absorption and rejection, which ultimately leads to ice production.Therefore, the performance, efficiency, and reliability of the compressor directly determine the ice-making capacity, speed, and energy consumption of the entire ice maker.
Service Commitment
We provide 24/7 online service and technical support through our dedicated presales and
aftersales teams. From inquiry to installation and operation, our team is always ready to assist.
We supply OEM and ODM service, all our ice machines are certificated with CE and ISO9001.
We are now looking for long-term distributors in South America, North America, Europe, and
Africa. Join us for mutual growth and a win-win partnership.
